Description
A quality combination square is an incredibly versatile tool in the woodshop. Here are some of its most useful functions:
- Checking Angles: Use the square and miter heads to check 90° and 45° angles. The protractor head allows you to measure and mark any angle in between.
- Measuring Depth: The blade, in combination with the square head, can be used to accurately measure depth.
- Finding Center: The center-finding head makes it easy to locate the center of square or cylindrical objects.
- Marking Angles: The blade, along with the square, miter, and protractor heads, allows for precise marking of lines at various angles.
- Level and Plumb: Many combination squares include a built-in bubble vial for checking level and plumb.
- General Measuring: The ruled blade serves as a precise measuring tool for layout work and general measurements.
- Checking Flatness: The straight blade can be used to check the flatness of surfaces.
- Repeatable Layouts: The blade, when set in the square head, allows for consistent, repeatable measurements and markings.

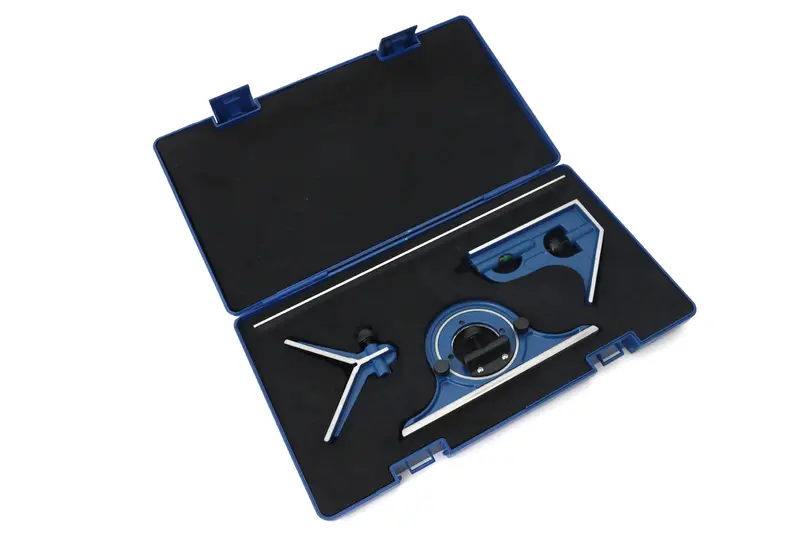

This well-made 4-piece combination square set includes:
- A cast square/miter head with a steel scribing pin and built-in level vial
- A 12″ reversible hardened steel rule
- A reversible cast-iron bevel protractor head
- A cast center-finding head
The rule features photo-engraved scales and a satin-chrome finish that reduces glare and resists rust. Square to within ±0.004″, it’s graduated in the 4R style (with laser-engraved marks in 8ths, 16ths, 32nds, and 64ths) and measures 0.090″ thick by 1″ (25mm) wide. It is straight and parallel within 0.001″ per foot.
The precisely machined heads have lapped faces and a smooth, baked-on enamel finish. The set comes in a fitted, foam-lined hardshell case.
This is a well-crafted and accurate square set offered at a great price—an excellent addition to any workshop.
Specifications:
- Blade Length: 12″
- Blade Width: 1″
- Blade Thickness: 0.085″
- Graduations: 4R (1/8″, 1/16″, 1/32″, 1/64″)
- Head Width: 3-5/8″
- Head Height: 4-5/8″
- Head Thickness: 3/4″
- Center Finder Width: 3″
- Center Finder Height: 3-3/4″
- Protractor Length: 6-7/8″
- Protractor Width: 3-3/8″
