Description

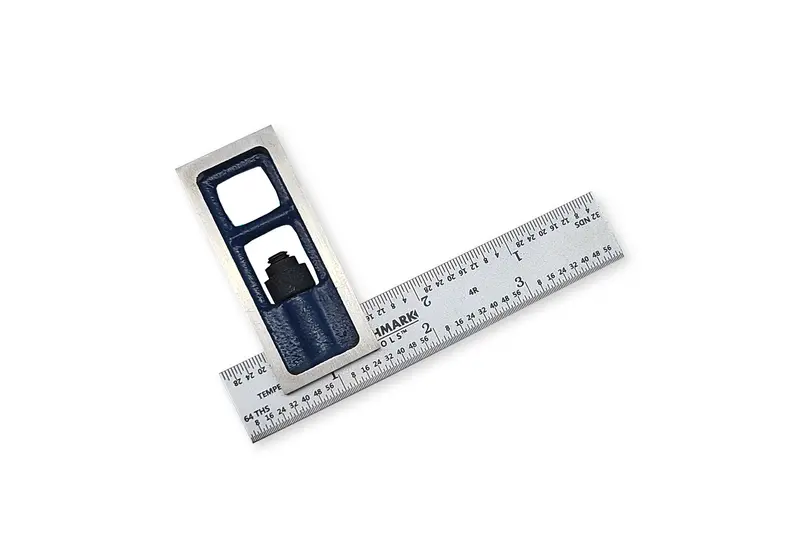

These handy double squares are indispensable for setting up machinery and for performing a host of shop layout tasks.
They are manufactured in accordance with EEC Class 1 accuracy standards and are guaranteed to be square to within 0.002 (two thousandths of an inch) over the length of each blade.

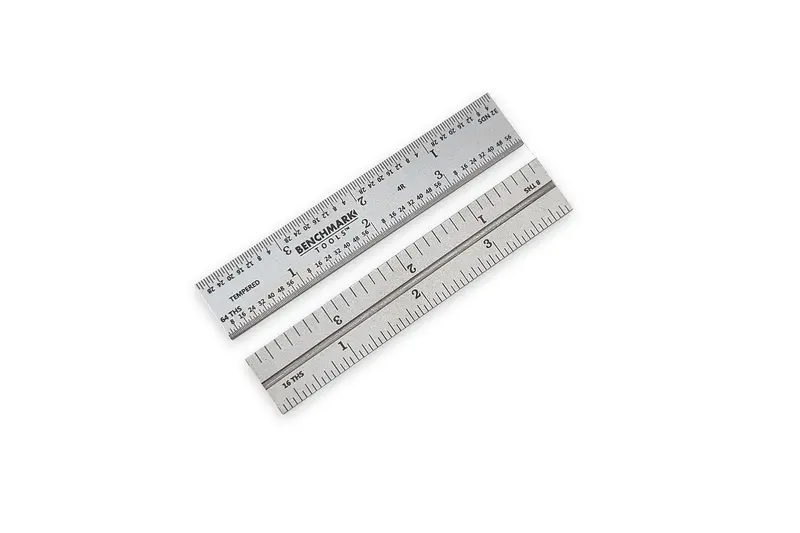

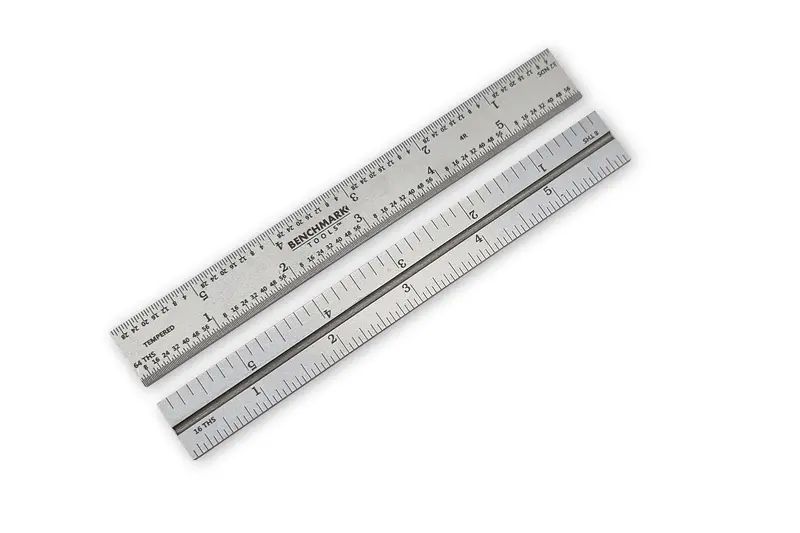

They have hardened and tempered no-glare satin chrome stainless steel blades. Blade marking are precision photo etched and then black filled for easy readability. Blades have quick Reading 4R markings (1/64ths and 1/32nds on one side and 1/8ths and 1/16ths on the reverse.
Square heads are cast and then precision machined. Square head color is cobalt blue. Square heads lock down tight via locking knob.
Squares come in a cardboard box.
Available in with either a 4” or 6” blade. Spare blades and locking screws are also available.
Specifications:
Blade width: 0.728” +/- 0.01”
Blade thickness: 0.078” +/- 0.008”
Blade groove: 0.86” wide and 0.03” deep
Graduations: Quick reading 4R (1/8, 1/16, 1/32, 1/64)
Head thickness: 0.472” +/- 0.02”
Head width: 0.084” +/- 0.02”
Head height: 2.36” +/- 0.02”
