Description
Extra large 9 3/4″ dual ring burner to accommodate large cookware
2.13″ H x 30.25″ W x 20.5″ D
(5cm H x 77cm W x 52cm D)
FEATURES
30″ wide 4-burner radiant cooktop
Designed to fit common 29 1/2″ x 19 5/8″ counter cutouts
EuroKera glass surface
Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
Extra large 2500W burner
Conveniently located front right burner comes with a 9 3/4″ diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed
Large 1800W burner
1800W burner located in the left rear is 8″ in diameter to handle larger cooking vessels
2 Standard 1200W burners
Front left and rear right burners are 6.5″ in diameter to meet most cooking needs
Dual cooking zone
Front right burner includes an inner 5 1/2″ burner, allowing you to save energy when heating smaller cookware
Residual heat indicator light
Indicator shows when the surface is still hot to touch

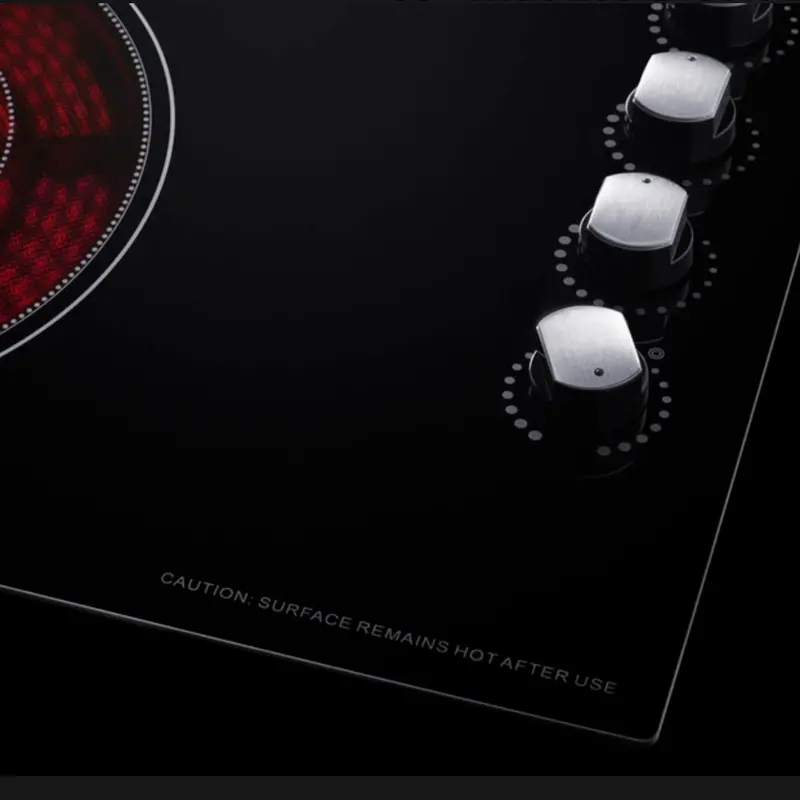

Push-to-turn knobs
Controls require a gentle push to help prevent cooking accidents
208-240V operation
Requires professional hardwired installation (cord not included)
DESCRIPTION
Summit’s collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters.
The CR4B30MB is a 30″ wide 208-240V radiant cooktop designed to fit popular 29 1/2″ W x 19 5/8″ D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.
Four elements let you meet a variety of cooking needs, with an extra large 2500W 9 3/4″ front dual zone element ideal for woks, Dutch ovens, and other larger cooking vessels. The inner element is just 5 1/2″, perfect for smaller pots used to melt butter, chocolate, and more. This unit includes an 1800W 8″ burner located in the rear left, great for boiling water or heating up sauces in large pans while the front element is also in use. Two 6 1/2″ 1200W elements accommodate smaller cookware.
The knob controls are located to the right, ensuring you won’t have to reach over the controls when adjusting your pots and pans. Each knob features a stainless steel look for added style. For added safety, the knobs require a light push-to-turn force to help prevent accidental adjustments. A residual heat indicator light lets you know when the surface is still hot to touch.
With its attractive design and smartly designed burner configuration,, the CR4B30MB is the perfect choices for convenient cooking. Additional choices are available in 24″ and 36″ wide sizes, as well as white glass finishes and with digital controls. Browse the full Summit lineup for more.
SPECIFICATIONS
| Overview | |
|---|---|
| Height of Cabinet | 2.13″ (5 cm) |
| Width | 30.25″ (77 cm) |
| Depth | 20.5″ (52 cm) |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 25.0 |
| Voltage/Frequency | 240 V AC/60 Hz |
| Weight | 28.0 lbs. (13 kg) |
| Shipping Weight | 29.5 lbs. (13 kg) |
| Parts & Labor Warranty | 1 Year |
| UPC | 761101077536 |
| Electric Cooktop | |
| Heating Type | Radiant |
| Surface | Glass |
| Element Type | Glasstop |
| Number of Elements | 4 |
| Controls | Dial |
| Countertop Cutout Height | 3.2″ (8 cm) |
| Countertop Cutout Width | 29.5″ (75 cm) |
| Countertop Cutout Depth | 19.63″ (50 cm) |
| Element #1 Size | 6.5″ (17 cm) |
| Element #1 Wattage | 1200.0 |
| Element #2 Size | 8.0″ (20 cm) |
| Element #2 Wattage | 1800.0 |
| Element #3 Size | 6.5″ (17 cm) |
| Element #3 Wattage | 1200.0 |
| Element #4 Size | 9.75″ (25 cm) |
| Element #4 Wattage | 2500.0 |
| Power Cord Included | No |
DOWNLOADS
BROCHURE w/ DRAWINGS
CR4B30MB.pdf TECHNICAL DRAWING (.dwg)CR4B30MB-LCR4BK_COOKTOP__A-C___1_.dwg ASSEMBLY DRAWINGCR4B30MB_CUTOUT.pdf
USE & CARECRH2BT30115_CRH2BT30230_CR4B30_CR45B30_CR5B36_SINC2B230_SINC2B115_SINC2B23_SIN4B_SINC5B_Use_and_Care__9.2023.pdf
