Description

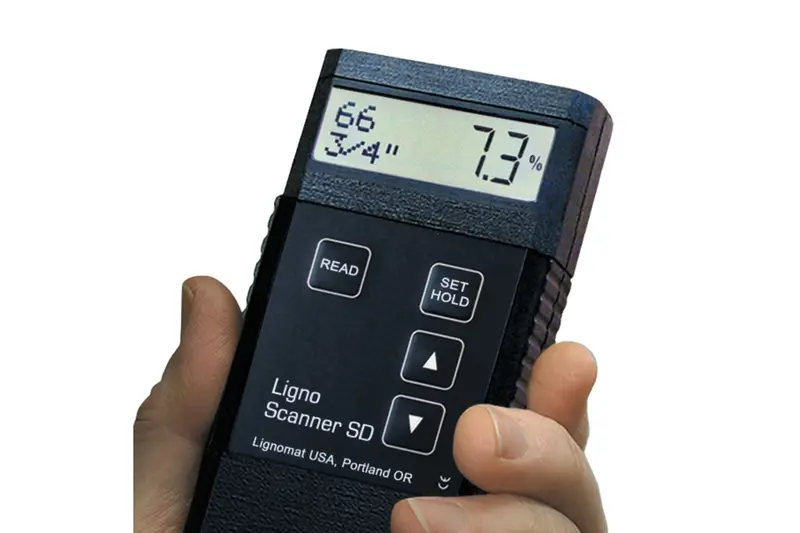

The Ligno-Scanner SD is a dual-depth pinless moisture meter, easy to use and self calibrating. The dual-depth meter has 2 independent sets of calibrations, one for measuring 1/4″ deep and one for measuring 3/4″ deep. Dual-depth settings are available for all wood species settings and the reference scale, an advantage over standard pinless meters, which have a fixed 3/4″ measuring depth.
This unique dual-depth pinless moisture meter adds versatility whether you are woodworking, manufacturing furniture, installing floors or working a restoration job.
Dual-depth – a new approach to scanning – works well for:
- Different board thicknesses, over 3/4″ and boards thinner than 3/4″
- Floor testing at 1/4″ depth assures only the floor planks are measured and not the concrete or subfloor underneath.
- Engineered panels and floor planks, measuring top layer and overall product
- Compare surface / core moisture to check if boards are dried evenly.
- Check surface moisture after water damage or after applying waterborne finishes.
| Included | Ligno-Scanner SD, pouch with belt-loop, one 9 V battery, manual and laminated wood species card. |
| Measuring Range |
5-60% dependent upon species setting* Lower than 5% for hardwoods, higher than 5% for softwoods |
| Display | 0.1% resolution for the entire range |
| Species Corrections |
71 wood species settings, or specific gravity of the wood, between 0.3 and 1.0 (setting 30-100) |
| Measuring Depth | Dual depth measuring capabilities at 1/4″ and 3/4″ |
| Reference Scale | 0-99 for non-wood building materials |
| Calibration |
Stable calibration not affected by ambient temperature. Built-in calibration check. |
| Calibration Check | External calibration check block #TS is available to verify the calibration and functions of the meter. |
| Size | Pocket-size 2″ x 5.5″ x 0.5″, measuring pad 1 5/8″ x 2 5/8″ |
| Weight | 8 ounces (200 g), made out of high-impact plastic |
| Warranty | All moisture meters have a 2 year warranty. Battery excluded. |
