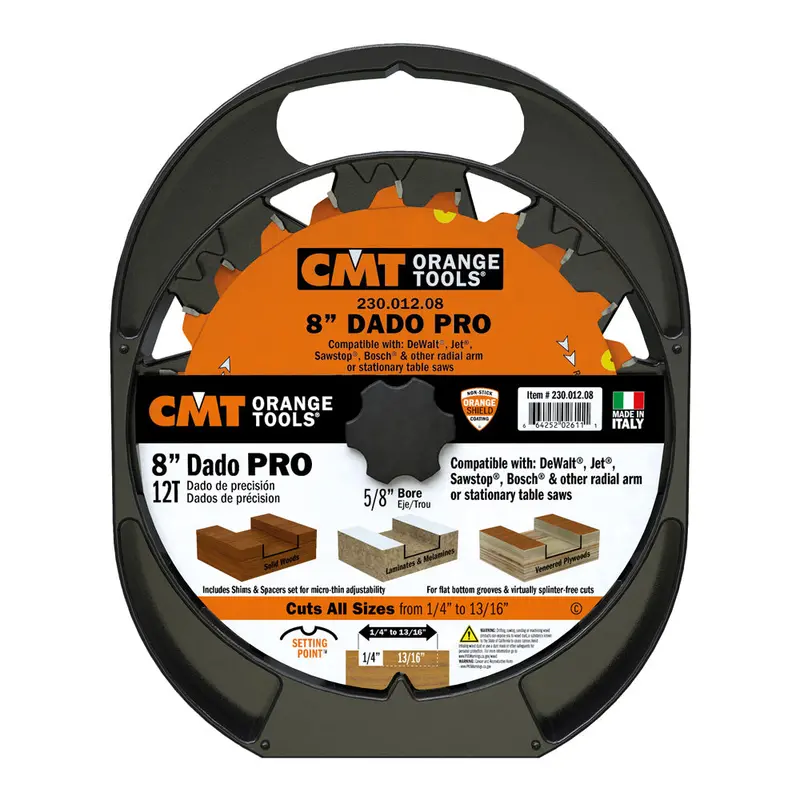

Cmt Orange 8″ Precision Dado Blade Set – 12T Ftg+Atb, 0.125″ Kerf

Description

CMT designed this new Dado Precision Set with the following features:

• Ideal for tongue & groove, shelving and rabbets in in solid wood, laminates & melamines, veneer plywood.
• Orange Shield Coating protect from heat, gumming and corrosion.
• New Setting Points for chippers alignment.
• Includes shims and spacers set for micro-thinadjustability

3 total chippers: 3 x 1/8”

3 total shims: 3 x 1/16″

8 total shims: 5 x 0.004″, 1 x 0.008″, 1 x 0.012″ , 1 x 0.020″

Able to cut dados from 1/4″ to 13/16″

Model number: 230.012.08

Applications: shelving, tongue & groove, rabbets

Machines: table saw, radial arm saw

Material: softwood, hardwood, plywood, melamine

Finish quality: “Excellent” for ripping wood and plywood and “Good” for ripping and crosscutting plywood

Size: 8”

Bore: 5/8”

Teeth: 12

Grind: chippers are flat top grind and blades are flat top grind and alternate top bevel

Tooth hook angle: -12 degrees

Click here for instruction manual
